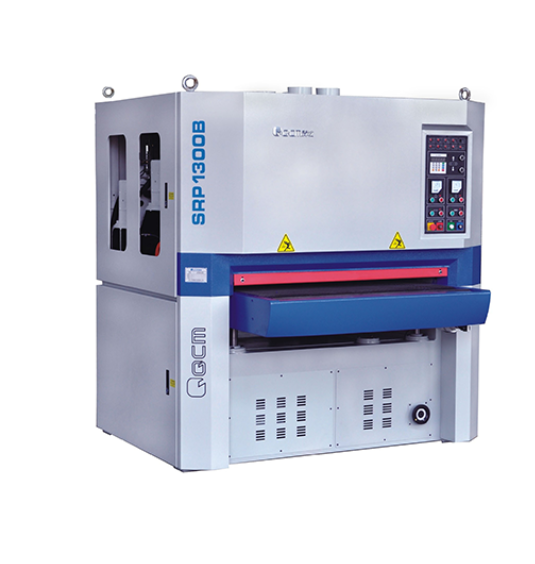

Brief: Suzhou Gaojing CNC Machinery Co.,Ltd is focused on selling wood working machinery for more than 6 years. We devoted ourselves to edge banding machine, drilling center, machining center. The following is about double wide belts sanding Machine, we hope to help you better understand of it.



The double wide belts sanding machine professional solution: to the fine sanding of big board, for the ginger-board industry, joinery board and solid wood processing industry,etc. The main frame is casting, which ensure the machine performance is stable and the machining accuracy is high. The second group of idler  roller adopt non-return roller,which is much safer for workers operating.

The double wide belts sanding machine parameter


SRRP1300B

Sanding board width

40~1300mm

Sanding board thickness

3~160mm

Sanding board length

≥580mm

The first group of belt speed

19m/s

The second group of belt speed

18m/s

Conveyor belt feeding speed

6~30m/min

Belt size

1330*2200mm

Sand conveyor belt size

1330*4000mm

Total motor capacity

57.1KW

Motor capacity of the first group of abrasive belts

30KW

Motor capacity of the second group of abrasive belts

22KW

Conveyor motor capacity

4KW

Dust brush motor capacity

0.37KW

Table lifting motor capacity

0.75KW

Diameter of suction port

Φ150 *5

Working pressure

0.60Mpa

Compressed air consumption

0.1m^3/min

Required dust suction air volume

9500m^3/h

Average wind speed of vacuum cleaner

25~30m/s

Dimensions (length*width*height)

226*206*223cm

Weight

3700kg
