Brief： Suzhou Gaojing CNC Machinery Co.,Ltd is focused on selling wood machinery for more than 6 years. We devoted ourselves to edge banding machine, drilling center, machining center. The following is about high quality CNC machine, we hope to help you better understand of it.
high quality CNC machine, adapt to flexible cutting process for customized furniture. Features
1. High duty and precise machine body, ensure machine long term stable working;
2. Max speed of X/Y/Z achieve 80/80/25 m/min;
3. Industrial computer and Delta controller;
4. Standard with KDT 9KW spindle;
5. Auto alarm unit,easy for checking problem.
high quality CNC machine FEATURES
| ◆High rigidity frame base, Vacuum chamber, adsorption force for small panel is enough |
| ◆Delta bus system+PC control |
| ◆Transmission mechanism: X/Y axis adopts high precision helical gear rack from Taiwan, with high precision and smooth operation. |
| ◆special tool measure device | |||
| ◆KDT 9KW spindle | |||
| ◆Delta 0.85kW servo motor |
| ◆Transmission mechanism: z-axis adopts Taiwan ball screw, with high movement precision and compact structure. |
| ◆Vacuum pump: 244m cubed /h dry air-cooled vacuum pump with large flow to ensure the adsorption of plates and prevent small plates from running off. |

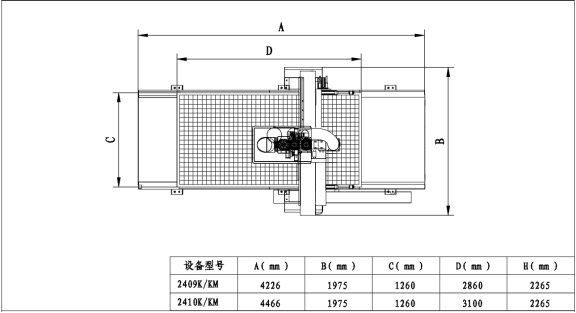

high quality CNC machine LAYOUT DIMENSIONS
STANDARD MACHINE PARAMETERS | ||||||
STANDARD MODELS | PACKAGE SIZE(X Y Z) mm | GROSS WEIGHT(kg) | POWER(kW) | Working Pressure(MPa) | ||
KN-2409K | 4300 | 2000 | 2580 | 3400 | 17.9 | 0.6 |
KN-2410K | 4500 | 2000 | 2580 | 3500 | 17.9 | 0.6 |
