Brief： Suzhou Gaojing CNC Machinery Co.,Ltd is focused on selling wood machinery for more than 6 years. We devoted ourselves to edge banding machine, drilling center, machining center. The following is about high quality CNC machine, we hope to help you better understand of it.
high quality CNC machine, adapt to flexible cutting process for customized furniture. Features：
1. High duty and precise machine body, ensure machine long term stable working;
2. Max speed of X/Y/Z achieve 80/80/25 m/min;
3. LNC control system;
4.Double spindle： KDT 9KW*1+6KW *1
5. Auto alarm unit,easy for checking problem.
high quality CNC Machine FEATURES
| ◆High rigidity frame base, Vacuum chamber, adsorption force for small panel is enough |
| ◆LNC control system:Clear interface, simple operation;Stable performance and wide application; Multi-axis control, linkage precise positioning; |
| ◆Transmission mechanism: X/Y axis adopts high precision helical gear rack from Taiwan, with high precision and smooth operation. |
| ◆special tool measure device |
| ◆Double spindle:9KW*1+6KW*1 |
| ◆Servo driven:Eston servo driven;max speed achieve 80m/min |
| ◆Transmission mechanism: z-axis adopts Taiwan ball screw, with high movement precision and compact structure. |
| ◆pusher unit(only for single working station) |

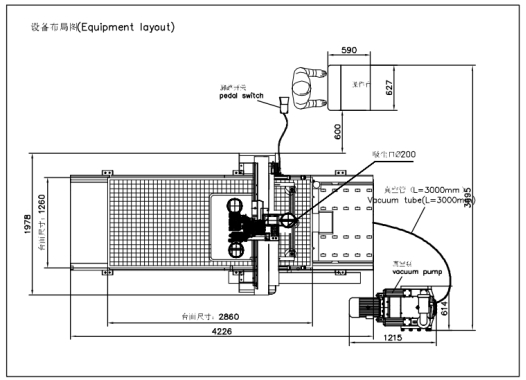

High quality CNC Machine LAYOUT DIMENSIONS
High quality CNC Machine parameters
STANDARD MACHINE PARAMETERS | ||||||
STANDARD MODELS | PACKAGE SIZE(X Y Z) mm | GROSS WEIGHT(kg) | POWER(kW) | Working Pressure(MPa) | ||
KN-2409T | 4300 | 2000 | 2580 | 3420 | 24.5 | 0.6 |
STANDARD MACHINE PARAMETERS | |||||||
KN-2409T | |||||||
MAX SPEED(m/min) | 80/80/25 | ||||||
MIN PANEL(L*W) | / | ||||||
MAX PANEL(L*W) | 2860*1260 | ||||||
Max moving speed X/Y/Z | 80/80/25m/min | ||||||
Operating system | LNC | ||||||
Drive system | Eston | ||||||
Vacuum pumping speed | 244m3/h | ||||||
Drilling package | none | ||||||
Working table size | 2860*1260mm | ||||||
Machining size | 2860*1260*70mm | ||||||
Spindle | Double Spindle | ||||||
Spindle power | 9KW*1+6KW*1 | ||||||
Magazine capacity | none | ||||||
