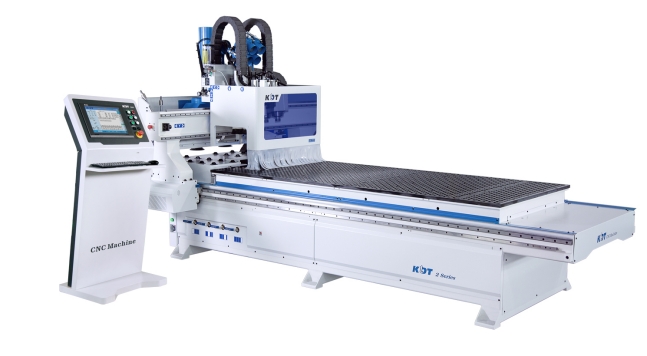

Four-knife Cutting Machine
Brief： Suzhou Gaojing CNC Machinery Co.,Ltd is focused on selling wood machinery for more than 6 years. We devoted ourselves to edge banding machine, drilling center, machining center. The following is about Four-knife Cutting Machine, we hope to help you better understand of it.
Four-knife Cutting Machine Features：
High-quality and economical machining center, which has panel cutting, drilling, hogging,milling function. The software interface is generally available, easy to operate and control.
1. Heavy duty and high precision machining body, ensure long period running;
2.Max speed of X/Y/Z is 80/80/20 m/min;
3.Standard with LNC control system ;
4.Standard with KDT 6KW*2+4.5KW*2 spindle.
5. Automatic alarm device, easy to check equipment failure.
Four-knife Cutting Machine FEATURES
| ◆High rigidity frame base, Vacuum chamber, adsorption force for small panel is enough |
| ◆LNC control system:Clear interface, simple operation;Stable performance and wide application; Multi-axis control, linkage precise positioning; |
| ◆Transmission mechanism: X/Y axis adopts high precision helical gear rack from Taiwan, with high precision and smooth operation. |
| ◆special tool measure device |
| ◆Double spindle:9KW*1+6KW*1 |
| ◆Servo driven: Eston servo driven;max speed achieve 80m/min |
| ◆Transmission mechanism: z-axis adopts Taiwan ball screw, with high movement precision and compact structure. |
| ◆pusher unit(only for single working station) |

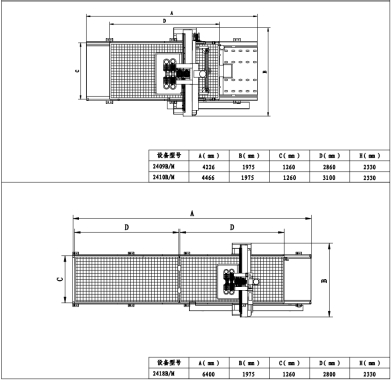

Four-knife Cutting Machine LAYOUT DIMENSIONS
Four-knife Cutting Machine parameters
STANDARD MACHINE PARAMETERS | ||||||
STANDARD MODELS | PACKAGE SIZE(X Y Z) mm | GROSS WEIGHT(kg) | POWER(kW) | Working Pressure(MPa) | ||
KN-2409M | 4300 | 2000 | 2330 | 3308 | 30.5 | 0.6 |
KN-2410M | 4500 | 2000 | 2330 | 3400 | 30.5 | 0.6 |
KN-2418M | 6500 | 2000 | 2330 | 5050 | 36 | 0.6 |
