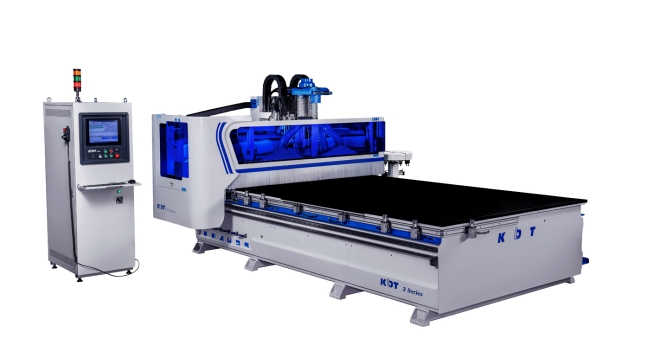

CNC Machine with Automatic Tool Change



BriefSuzhou Gaojing CNC Machinery Co.,Ltd is focused on selling wood machinery for more than 6 years. We devoted ourselves to edge banding machine, drilling center, machining center. The following is about CNC Machine with Automatic Tool Change, we hope to help you better understand of it.

CNC Machine with Automatic Tool Change configuration features:  High-quality machining center, adapt to variety flexible cutting process for customized furniture company, which has quick nesting, drilling, hogging,milling function.
The software interface is generally available, easy to operate and control.

1. Heavy-duty&high rigidity machine body, stable in running;
2.13.2 KW spindle, 12 disc servo control tool magazine;
3.Applies with the imported Servo drive system, stable in the high speed running.
4.Max working speed achieve x:80m/min,y:80m/min,z:25m/min;
5.Standard with SYNTEC/TPA controller, and industrial computer.
6.Auto alarming system, easy for machine checking.

CNC Machine with Automatic Tool Change  FEATURES




◆High rigidity machine body:Seasonally tempered, five side milling is processed at one time;4 partition double vacuum adsorption table,ensure the full strength when processing small panel.






◆9V drilling head(D model have)






Synthetic bus control system(PC control)






◆X/Y axis use TAIWAN high precision rack and pinion





◆13.2KW HSK-F63 spindle






◆CNC 3 Series (H Model) 12V+3H Drill Package






◆1.3KW*4 Delta servo driven, max speed up to 80m/min






◆Z axis use PMI screw



CNC Machine with Automatic Tool Change LAYOUT DIMENSIONS



CNC Machine with Automatic Tool Change  parameters

STANDARD MACHINE PARAMETERS

STANDARD MODELS

PACKAGE SIZE(X Y Z) mm

GROSS WEIGHT(kg)

POWER(kW)

Working Pressure(MPa)

KN-3710D

4325

2325

1000

5000

32.55

0.65

KN-3713D

5510

2325

1000

5500

32.55

0.65





CNC Machine with Automatic Tool Change applications



APPLICATIONS

work with full set production line: auto feeder-CNC machine- auto unloading machine
