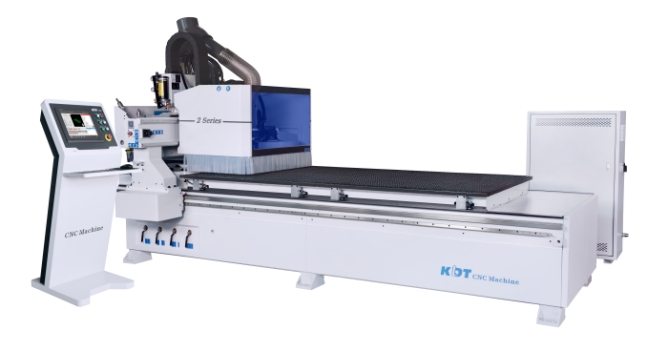

CNC Machine with Automatic Tool Change
Brief： Suzhou Gaojing CNC Machinery Co.,Ltd is focused on selling wood machinery for more than 6 years. We devoted ourselves to edge banding machine, drilling center, machining center. The following is about Machining Center with Drill Bag High-quality and economical machining center, which has panel cutting, drilling, hogging,milling function. The software interface is generally available, easy to operate and control. , we hope to help you better understand of it.
Machining Center with Drill Bag High-quality and economical machining center features:
1. Heavy duty and high precision machining body, ensure long period running;
2.Max speed of X/Y/Z is 60/60/20 m/min;
3.Standard with Delta controller and computer;
4.Standard with KDT 9KW spindle, 12 disc servo control tool magazine;
5. Automatic alarm device, easy to check equipment failure.
Machining Center with Drill Bag FEATURES
| ◆High-rigidity frame, 4-zone vacuum chamber, double vacuum adsorption, ensuring that the small plate has enough adsorption force. |
| ◆KDT 9V boring head (2408DE model) |
| ◆Delta 0.85kW servo motor |
| ◆Z axis use PMI screw | |||
| ◆KDT 9KW ISO-30 spindle | |||
| ◆Delta bus system+PC control |
| ◆Taiwan YYC helical tooth Rack&Pinion |
| ◆Tool Magazine: |

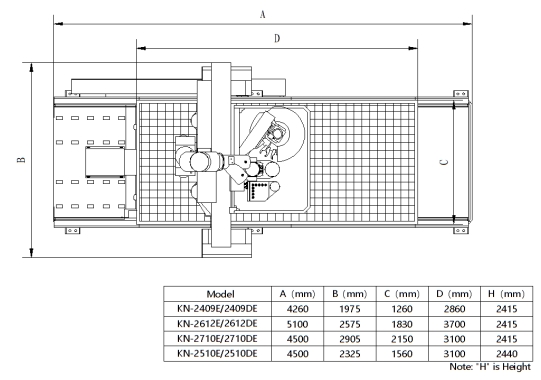

Machining Center with Drill Bag LAYOUT DIMENSIONS
Machining Center with Drill Bag，parameters
STANDARD MACHINE PARAMETERS | ||||||
STANDARD MODELS | PACKAGE SIZE(X Y Z) mm | GROSS WEIGHT(kg) | POWER(kW) | Working Pressure(MPa) | ||
KN-2409DE | 4290 | 2040 | 2220 | 3500 | 20 | 0.65 |
KN-2409E | 4290 | 2040 | 2220 | 3500 | 18.3 | 0.65 |
KN-2612DE | 5100 | 2680 | 2230 | 5000 | 25.5 | 0.65 |
KN-2612E | 5100 | 2680 | 2230 | 5000 | 23.8 | 0.65 |
KN-2710DE | 4500 | 3000 | 2230 | 5000 | 25.5 | 0.65 |
KN-2710E | 4500 | 3000 | 2230 | 5000 | 23.8 | 0.65 |
KN-2409DE | KN-2409E | KN-2612DE | KN-2612E | KN-2710DE | KN-2710E | |
MAX SPEED(m/min) | 60/60/20 | 60/60/20 | 60/60/20 | 60/60/20 | 60/60/20 | 60/60/20 |
MIN PANEL(L*W) | / | / | / | / | / | / |
MAX PANEL(L*W) | 2860*1260 | 2860*1260 | 3700*1830 | 3700*1830 | 3100*2150 | 3100*2150 |
Max speed X/Y/Z m/min | 60/60/20 | 60/60/20 | 60/60/20 | 60/60/20 | 60/60/20 | 60/60/20 |
Operating system | Delta | Delta | Delta | Delta | Delta | Delta |
Drive system | Delta | Delta | Delta | Delta | Delta | Delta |
vacuum pumping speed | 244m3/h | 244m3/h | 244*2m3/h | 244*2m3/h | 244*2m3/h | 244*2m3/h |
Drilling package | KDT 9V | None | KDT 9V | None | KDT 9V | None |
Machining size | 2860*1260*70 | 2860*1260*70 | 3700*1830*80 | 3700*1830*80 | 3100*2150*80 | 3100*2150*80 |
Working table size(mm) | 2860*1260 | 2860*1260 | 3700*1830 | 3700*1830 | 3100*2150 | 3100*2150 |
Spindle | KDT ISO-30 | KDT ISO-30 | KDT ISO-30 | KDT ISO-30 | KDT ISO-30 | KDT ISO-30 |
Spindle power(standard) | 9KW | 9KW | 9KW | 9KW | 9KW | 9KW |
Magazine capacity | 12 | 12 | 12 | 12 | 12 | 12 |
