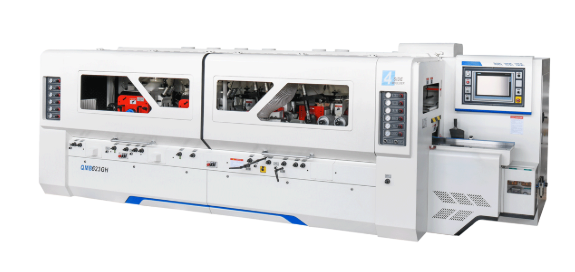

High-speed Four-side Moulder (6 spindles)

Brief： Suzhou Gaojing CNC Machinery Co.,Ltd is focused on selling wood working machinery for more than 6 years. We devoted ourselves to edge banding machine, drilling center, machining center. The following is about high-speed four side moulder 6 spindles, we hope to help you better understand of it.

High-speed four side moulder professional solution：four-side planing， fit for finger joint, wood-line factory, high efficiency and mass production. Φ50mm cutter spindles. The second top and bottom, two vertical cutters are all equipped with automatic sharpening mechanisms. And the rear upper and bottom horizontal cutter spindles are equipped with hydraulic out-support bearing devices. There are 2 sets of Φ180mm dia. Feed wheels in front, under them is the alloy steel worktable, high speed feeding and impact wear resistance.

High-speed four side moulder 6 spindles Product description

Introduction:

1. The machine body(frame) is made of cast iron, stable performance.

2. The whole machine is with cover, safe and low noise.

3. The main spindle diameter is φ50.

4. Equipped with 2 sets of cylinder floating bottom active rollers in front of the first bottom spindle, ensuring the strong and smooth feeding.

5. The rear top, rear bottom, right and left spindles are equipped with automatic straight-blade grinding mechanisms, to ensure on-line sharpening and keep the the consistency of the cutting circle.

6. The rear top and rear bottom spindles are equipped with oil-pressure outboard support structures, ensuring the high speed cutting performance and the good stability;

7. The front outer side pressure force of the left vertical spindle and the front top pressure force of the top spindle are driven by cylinders.

8. And the front pressure plate of the top cutter adopts the sectional type pressing structure, which can adjust the height of the front pressure plates respectively to facilitate the processing of wood products of different shapes.

9. The two top cutter spindles can do electric synchronous lifting, and also can adjusted separately through fine-tuning mechanism, which is easy and quick to operate.

10. The adjustment and control of the cutter spindle is controlled by PLC and touch screen, and with pneumatic lock; and each spindle also can be adjusted manually through the fine tuning mechanism.

11. Large diameter upper feeding wheels and overrunning clutch are installed at the feeding inlet to realize high speed feeding and ensure smooth feeding.

12. Feeding system is equipped with gear boxes and universal couplings. And the feeding speed is controlled by frequency inverter.

13. The pressure force of the rear pressure plate of top cutter is also controlled by cylinder.

14. The main electrical components and transmission parts are from international brands, stable performance.

High-speed four side moulder 6 spindles Product specification

Note: all above is for reference. We reserve the right of improving the parameter and apperance of this product.
