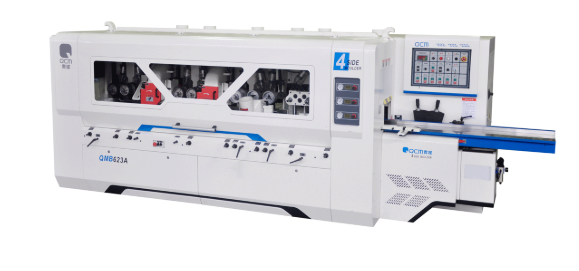

Four-side Moulder(6 spindles)
Brief： Suzhou Gaojing CNC Machinery Co.,Ltd is focused on selling wood working machinery for more than 6 years. We devoted ourselves to edge banding machine, drilling center, machining center. The following is about four-side moulder 6 spindles, we hope to help you better understand of it.
Four-side moulder 6 spindles are equipped with worktable with positioning grooves,reducing the worktable surface heating. The moving worktable is with the floating driving roller. Use international brand frequency converter, ensuring the table performance and easy operation.
Four-side moulder 6 spindles Product description
Item | QMB623A | |
Max.working width(cutter dia.φ125) | 230mm | |
Min.working width(cutter dia.φ125) | 20mm | |
Max.working thickness(cutter dia.φ125) | 160mm | |
Min.working thickness(cutter dia.φ125) | 8mm | |
Min.working length(single) | 840mm | |
Min.working length(continuously) | 280mm | |
Max.lifting of movable long feeding table | 7mm | |
Max.movement of movable long side fence | 7mm | |
Spindle dia. | φ40mm | |
Upper feeding wheel | φ140mm | |
Feeding speed | 6~36m/min | |
Spindle speed | 6800r/min | |
Cutter dia. | Front bottom cutter(planing) | φ125 |
Front bottom cutter(trim edge D*H) | φ152×12 | |
Vertical cutter | φ108 ~φ200mm | |
Front/rear top cutter | φ108 ~φ180mm | |
Rear bottom cutter | φ108 ~φ230mm | |
Motor power | Front bottom/right vertical spindle motor | Each 5.5kW |
Left/two top/rear bottom spindle motor | Each 7.5kW | |
Feeding motor | 5.5kW | |
Beaming lifting motor | 0.75kW | |
Dust outlet dia. | φ150mm×6 | |
Air supply pressure | 0.6MPa | |
Collection system air requirement | 180m3/min | |
collection system air speed | 30~40m/s | |
Overall dimension(L*W*H) | 496×190×170(cm) | |
Weight | 5600Kg | |
Note: we reserve the right of improving the parameter and appearance.
