Brief： Suzhou Gaojing CNC Machinery Co.,Ltd is focused on selling wood working machinery for more than 6 years. We devoted ourselves to edge banding machine, drilling center, machining center. The following is about four-side moulder(4 spindles) , we hope to help you better understand of it.

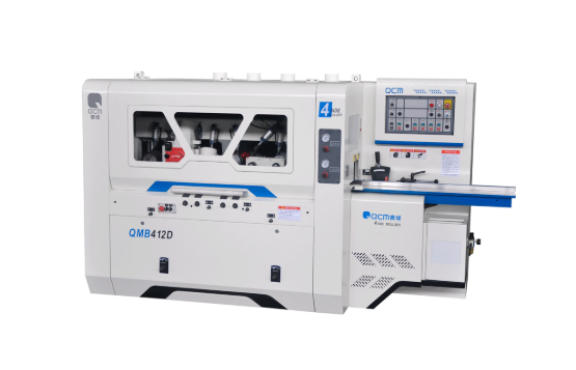

Four-side moulder（4 spindles） with hydraulic out-support bearing， casting iron body，ensuring the stable performance and good accuracy. Strong and precision spindle part，keeping stable performance and high precision.
Four-side Moulder(4 spindles) parameter
Item | QMB412D | |
Working width(cutterφ125) | 20~120mm | |
Working thickness(cutterφ125) | 8~100mm | |
Min. working length(single/next to each other) | 450mm/200mm | |
Max. lifting of movable long infeed table | 6mm | |
Max. movement of movable long guide fence | 6mm | |
Spindle dia. | φ40mm | |
Upper feed wheel dia. | φ140mm | |
Feeding speed | 8~33m/min | |
Front bottom spindle speed | 6800r/min | |
The rest spindle speed | 8000r/min | |
Cutter dia. | Front bottom planing cutter/trimming | φ125/φ152×12H |
Right/Left cutter | φ115~φ140mm | |
Top cutter | φ105~φ140mm | |
Total power 16.8KW | Front bottom/right/left spindle | Each 3kW |
Top spindle | 4kW | |
Feeding motor | 3.0kW | |
Beam lifting motor | 0.75kW | |
Air supply pressure | 0.3~0.6MPa | |
Dust outlet | φ120mm×4 | |
Air speed of collection system | 30~35m/s | |
Air need of collection system | 120m3/min | |
Dimension(L×W×H) | 296×145×166(cm) | |
Weight | 2300Kg | |
