BriefSuzhou Gaojing CNC Machinery Co.,Ltd is focused on selling wood working machinery for more than 6 years. We devoted ourselves to edge banding machine, drilling center, machining center. Double wide belts sanding machine , we hope to help you better understand of it.





Double wide belts sanding machine Product description

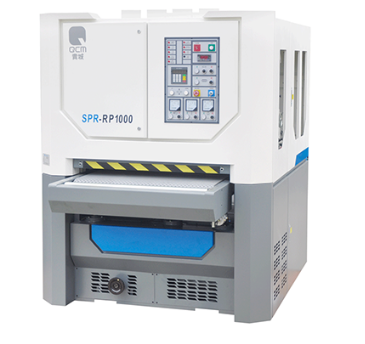

一、Model:SPR-RP1000  Planing&sanding machine



Product usage:

First planing then sanding.Mainly used for the planing and fine sanding of the jointing plate and the solid wood,etc. Suitable for the dining table and tea table maker.Improve the efficiency, reduce the process,and reduce the cost for manufacturer.

Features:

1、The beam support adopts high quality casting.Stable performance and good accuracy.

2、The machine sets precision spiral planing cutter, thickness rubber roller and combination-type fine polishing roller. First plane then sand, energy saving and efficiently.

3、Adopt imported planing-cutter roller with Φ180 cutting circle and 8 lines of 15 * 15 * 2.5 mm imported Luxembourg abandon type carbide blades.Good cutting quality.

4、The first sanding group adopts dia.Φ190 thickness rubber roller with semi-fine sanding, second sanding group adopts dia.Φ160 fine sanding roller with polishing function.

5、This machine is equipped with 7 groups pressure roller device, two groups in front, one between the cutter and semi-sanding roller, two between the semi-sanding roller and fine sanding roller and two in the rear.In front of the planing cutter, anti-kickback fingers device is configured to prevent the work-piece from rebounding to ensure safer operation.

6、The front of the planer roller parts is equipped with the structure of the keyboard type and sectional type pressure claws,the rear of it is the flat pressure plate structure, which can effectively meet the simultaneous feeding and cutting process of multiple work-pieces and greatly improve the production efficiency.

7、The top of the first idle pressure roller is equipped with the thickness protection device, which protects the planer shaft to ensure the safety and reliability.

8、The feeding adopts heavy helical gear - worm gear reducer and frequency converter to realize variable frequency speed control feeding, feeding speed of 6-30m/min.It runs smoothly and feeds strongly.

9、All electrical components are from Siemens company to ensure smooth operation and reliable performance.

10、Optional configuration: spiral cutter roller with 30*12 blades to meet  heavy cutting.

Double wide belts sanding machine  Main technical parameters:



No.



SPR-RP1000

1

working width

mm

40-1000

2

working height

mm

3-160

3

Min. Working length

mm

500

4

planing cutter speed

m/s

36

5

first sanding speed

m/s

18

6

second sanding speed

m/s

16

7

feed speed

 m/min

6-30

8

total power

kW

60.62

 9

cutter motor

kW

18.5

 10

first sanding motor

kW

22

 11

second sanding motor

kW

15

12

feed motor

kW

4.0

 13

elevating motor

kW

0.75

14

brush roller motor

kW

0.37

15

Sanding belt size

mm

1030*2200

16

working air pressure

Mpa

0.6

17

dust outlet dia.

mm

Φ150*9

18

overall dimensions

cm

277*177*217

19

weight

kg

4250



Note: the above appearance and technical parameter are subject to the real product.
