Brief: Suzhou Gaojing CNC Machinery Co.,Ltd is focused on selling wood machinery for more than 6 years. We devoted ourselves to edge banding machine, drilling center, machining center. The following is about three wide belts sanding machine, we hope to help you better understand of it.

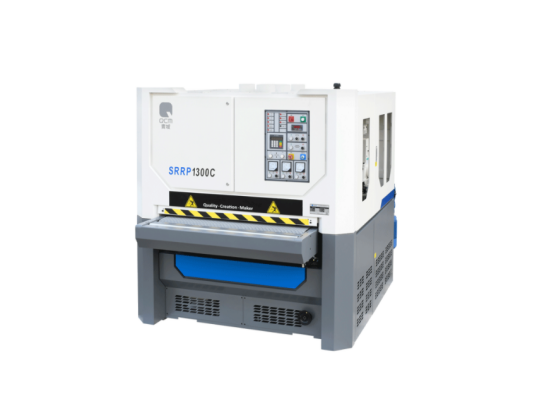

Three wide belts sanding machine professional solutionto the fine sanding of big board, for the finger-board industry, joinery board and solid wood processing industry, etc.  The main frame is casting, which ensure the machine performance is stable and the machining accuracy is high. The second group of idler roller adopt non-return roller, which is  safer  for workers operating.





Three wide belts sanding machine parameter




SRRP1300C

1

Sanding width

mm

40-1300

2

Sand thickness

mm

3-120

3

The shortest sanding length (fixed thickness)

mm

≥620

4

The first sand frame speed

m/s

21

5

Second sand shelf speed

m/s

19

6

The third sand shelf speed

m/s

18

7

Feeding speed

 m/min

6-30

8

Total machine power

kW

95.62


The first sand frame motor

kW

 37


The second sand frame motor

kW

30


The third sand frame motor

kW

22


Feeding motor

kW

5.5


Lifting motor

kW

0.75


Dust brush motor

kW

0.37

9

Belt size

mm

1330*2200

10

Conveyor belt size

mm

1300*5000

11

working desk size

mm

1330*2170

12

working pressure

Mpa

0.6

13

Air consumption

m3/min

0.1

14

Dust collection air volume

m3/h

9500

15

Vacuum speed

m/s

25-30

16

Diameter of suction port

mm

7-Φ150

17

Machine size

cm

280*204*220

18

Machine weight

kg

5050
