BriefSuzhou Gaojing CNC Machinery Co.,Ltd is focused on selling wood working machinery for more than 6 years. We devoted ourselves to edge banding machine, drilling center, machining center. The following is about wide belt sanding Machine, we hope to help you better understand of it.

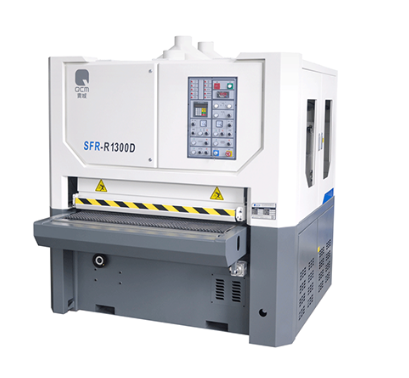

 Wide belt sanding machine Product Usage



This wide belt sanding machine product mainly meets the needs of the furniture manufacturer for high quality, high efficiency and surprise sanding of wood products. The company designed and produced a sand roller diameter of 300mm floating-type primer sander products.





Wide belt sanding machine Product parameter





No.

Parameter

Units

SFR-R1300D

1

working width

mm

40-1300

2

working thickness

mm

3-160

3

Min Machining length

mm

330

4

Feeding speed

m/min

5----30

5

First sand roller Dia

mm

φ300

6

Second sand roller Dia

mm

φ300

7

Total power

KW

38.67


First sand roller motor

KW

15

Second sand roller motor

KW

15

Brush roller motor

KW

0.37

Feeding motor

KW

3.7

Lifting motor

KW

0.55

Blowing motor

KW

2*0.025

Vacuum absorption machine

KW

4

8

Sand belt dimension

mm

1340*2200

9

Elevation of table above ground

mm

890

10

Dust outlet diameter

mm

3-φ180/3-φ150

11

Machine overall dimension

cm

252*213*235

12

Machine weight

kg

4700





Note: The product is constantly upgraded, and everything is in kind.
