BriefSuzhou Gaojing CNC Machinery Co.,Ltd is focused on selling wood working machinery for more than 6 years. We devoted ourselves to edge banding machine, drilling center, machining center. The following is about floating primer sander , we hope to help you better understand of it.

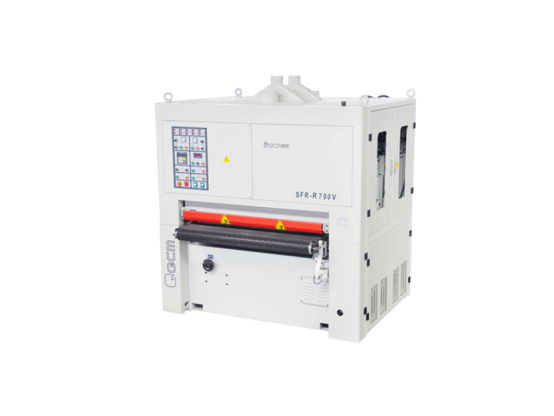

Floating Primer Sander is mainly based on the furniture manufacturing industry on the surface of wood products fine sanding needs. Maximum processing width 700mm, the maximum processing thickness is 160mm, feeding speed is 0-24m/min. The feature is that the worktable is fixed, and the sand frame parts adopt CNC lifting and thickness determination.The floating primer sander is mainly used for primer grinding and material pre-treatment (sanding before painting), but also in NV and UV paint on the assembly line production, can greatly improve the work efficiency







Floating Primer Sander parameter


SFR-R700V

Sanding board width

40~700mm

Sanding board thickness

3~160mm

Sanding board length

≥300mm

Conveyor belt feeding speed

0~24m/min

Belt size

770*2100mm

Total motor capacity

21.5KW

Motor capacity of the first group of abrasive belts

7.5KW

Motor capacity of the second group of abrasive belts

7.5KW

Vacuum adsorption motor capacity

4KW

Conveyor motor capacity

1.5KW

Dust brush motor capacity

0.37KW

Table lifting motor capacity

0.55KW

Blowing swing motor capacity

25KW

Diameter of suction port

Φ150 *6

Working pressure

0.60Mpa

Compressed air consumption

0.1m^3/min

Required dust suction air volume

9500m^3/h

Average wind speed of vacuum cleaner

25m/s

Dimensions (length*width*height)

205*211*230cm

Weight

3000kg
